A laser cooling solution designed for a wide range of non-metal processing applications The Blue Penguin JL series chiller, equipped with an advanced temperature control system, can be quickly integrated with CO₂ lasers to form a stable and reliable processing unit.
Key Features: Precise temperature control, flexible compatibility, and stable operation—easily adaptable to laser powers from 600W to 42,000W
Pain Points Solved: Effectively prevents laser overheating, reduces maintenance costs, and ensures long-term high-performance operation
| MODEL | Temperature Precision | Max.Pump Flow | Max.Pump Pressure | Refrigerant | Nominal Cooling Capacity |
|---|---|---|---|---|---|
| JL-3000 | 12L/mi | 13M | 50W/℃ | ||
| JL-3200 | 23L/mi | 15M | 100W/℃ | ||
| JL-5000 | ±0.3℃ | 12L/min | 13M | R-410A | 1.3KW |
| JL-5200 | ±0.3℃ | 23L/min | 15M | R-410A | 1.6KW |
| JL-5300 | ±0.5℃ | 23L/min | 15M | R-410A | 2KW |
| JL-5600 | ±0.5℃ | 28L/min | 32M | R-410A | 2.4KW |
| JL-5800 | ±0.5℃ | 28L/min | 32M | R-410A | 2.4KW |
| JL-6000 | ±0.5℃ | 28L/min | 32M | R-410A | 3KW |
| JL-6100 | ±0.5℃ | 70L/min | 22M | R-410A | 3KW |
| JL-6500 | ±0.5℃ | 70L/min | 22M | R-410A | 3.5KW |
| JL-7500 | ±0.5℃ | 70L/min | 22M | R-410A | 5.2KW |
| JL-8300 | ±0.5℃ | 80L/min | 30M | R-410A | 7.1KW |
| JL-9500 | ±1℃ | 80L/min | 38M | R-410A | 12.6KW |

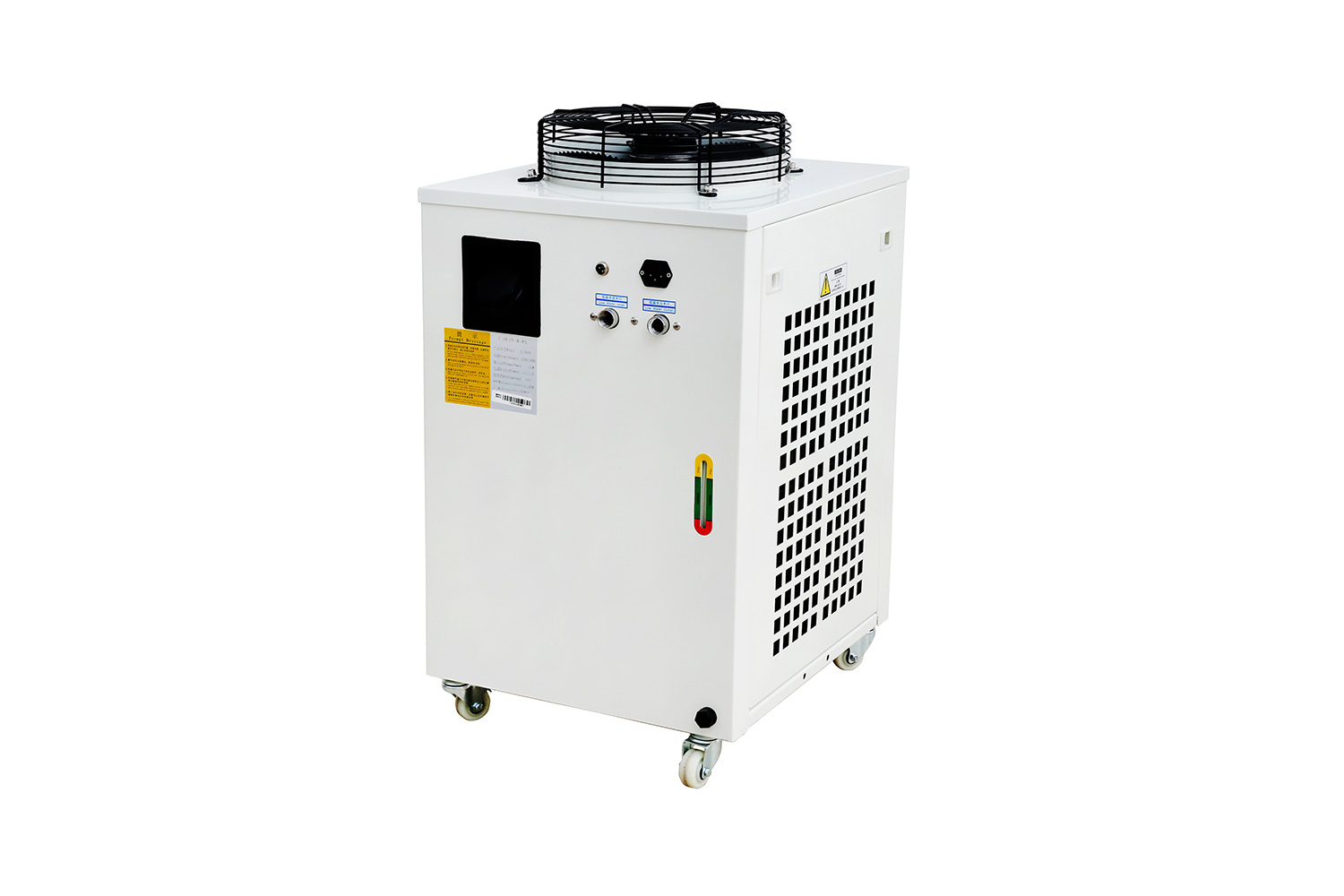

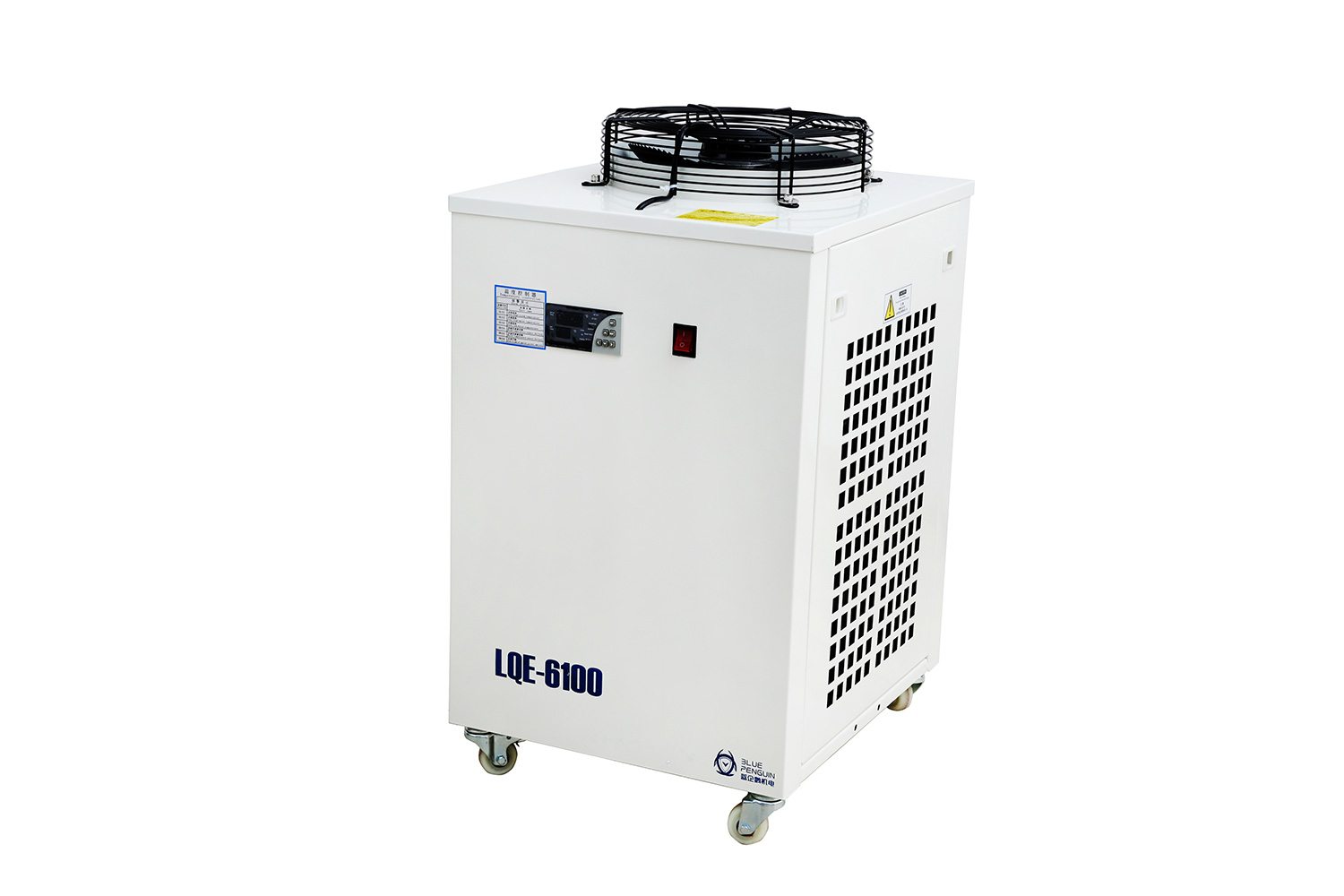

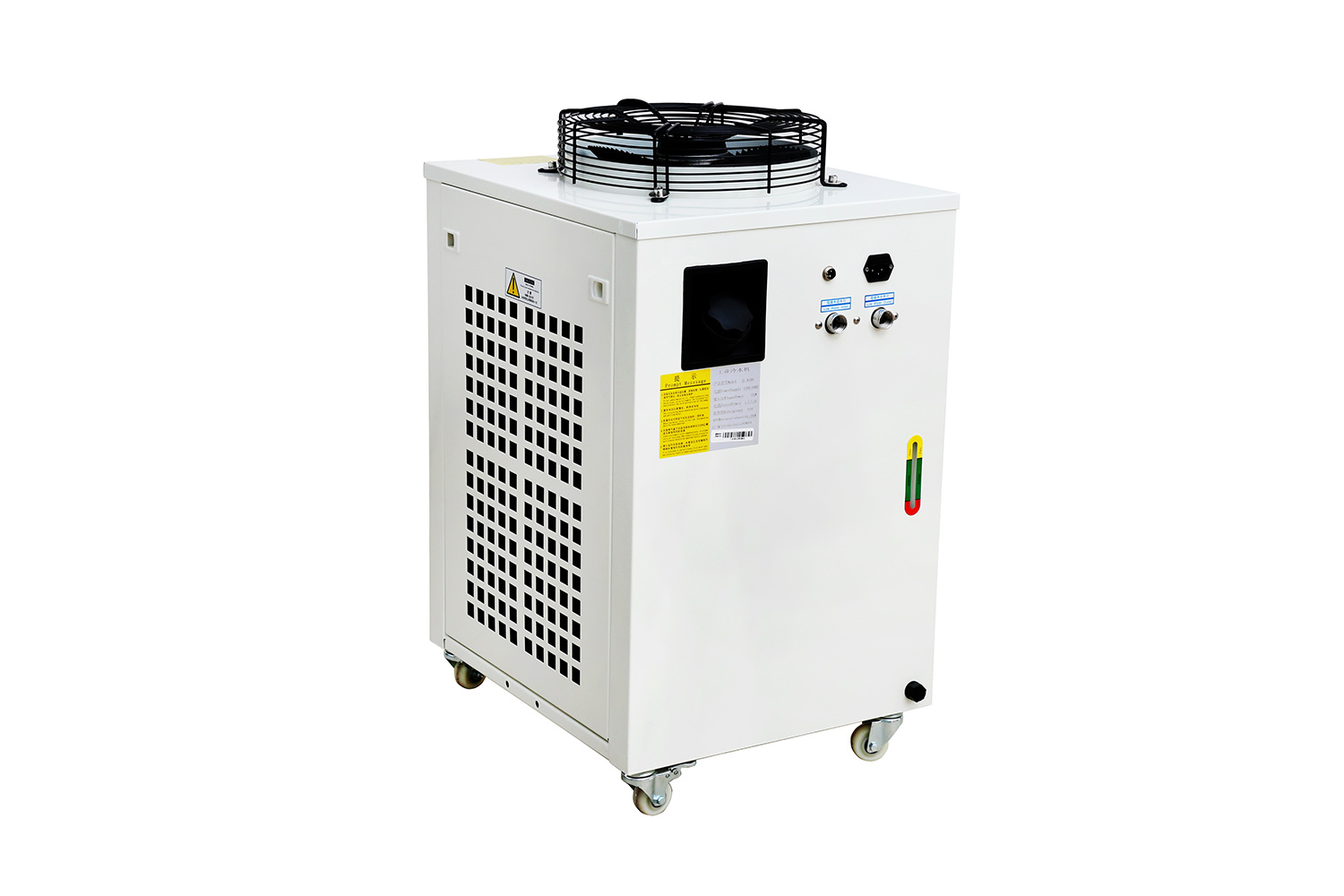

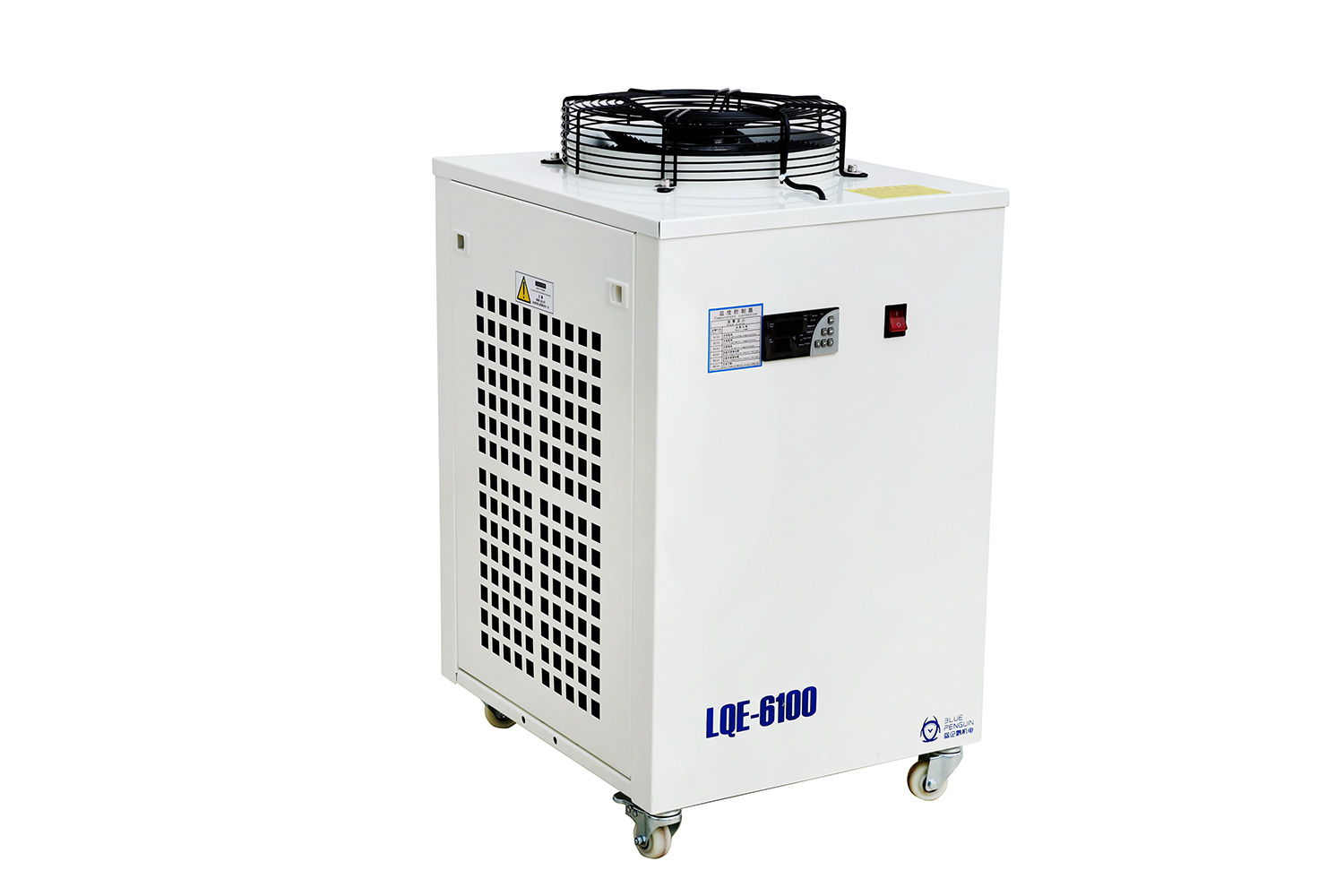

| MODEL | JL-6100A | JL-6100B | JL-6100C |
|---|---|---|---|
| Operating Voltage | AC 1PH 220V | AC 1PH 220V | AC 1P H110V |
| Operating Current | 1.3-7A | 1.3-7.5A | 2-12A |
| Frequency | 50HZ | 60HZ | 60HZ |
| Rated Power | 1.65KW | 1.78KW | 1.64KW |
| Rated Cooling Capacity | 2550 Kcar/h | ||
| 3.0KW | |||
| 10200 Btu/h | |||
| Refrigerant | R410a | ||
| Pump Voltage & Power | 220v/120W | 220v/120W | 110V/120W |
| Max. Head | 22M | ||
| Max. Flow Rate | 70L/min | ||
| Water Inlet/Outlet | R1/2 Internal Thread | ||
| Max. Reservoir Capacity | 18L | ||
| Chiller Dimensions (L*W*H) | 570*465*820mm | ||
| Package Dimensions (L*W*H) | 610*510*960mm | ||
| Net Weight | 45KG | ||
| Gross Weight | 52KG | ||
