A laser cooling solution designed for a wide range of non-metal processing applications The Blue Penguin JL series chiller, equipped with an advanced temperature control system, can be quickly integrated with CO₂ lasers to form a stable and reliable processing unit.
Key Features: Precise temperature control, flexible compatibility, and stable operation—easily adaptable to laser powers from 600W to 42,000W
Pain Points Solved: Effectively prevents laser overheating, reduces maintenance costs, and ensures long-term high-performance operation
| MODEL | Temperature Precision | Max.Pump Flow | Max.Pump Pressure | Refrigerant | Nominal Cooling Capacity |
|---|---|---|---|---|---|
| JL-3000 | 12L/mi | 13M | 50W/℃ | ||
| JL-3200 | 23L/mi | 15M | 100W/℃ | ||
| JL-5000 | ±0.3℃ | 12L/min | 13M | R-410A | 1.3KW |
| JL-5200 | ±0.3℃ | 23L/min | 15M | R-410A | 1.6KW |
| JL-5300 | ±0.5℃ | 23L/min | 15M | R-410A | 2KW |
| JL-5600 | ±0.5℃ | 28L/min | 32M | R-410A | 2.4KW |
| JL-5800 | ±0.5℃ | 28L/min | 32M | R-410A | 2.4KW |
| JL-6000 | ±0.5℃ | 28L/min | 32M | R-410A | 3KW |
| JL-6100 | ±0.5℃ | 70L/min | 22M | R-410A | 3KW |
| JL-6500 | ±0.5℃ | 70L/min | 22M | R-410A | 3.5KW |
| JL-7500 | ±0.5℃ | 70L/min | 22M | R-410A | 5.2KW |
| JL-8300 | ±0.5℃ | 80L/min | 30M | R-410A | 7.1KW |
| JL-9500 | ±1℃ | 80L/min | 38M | R-410A | 12.6KW |

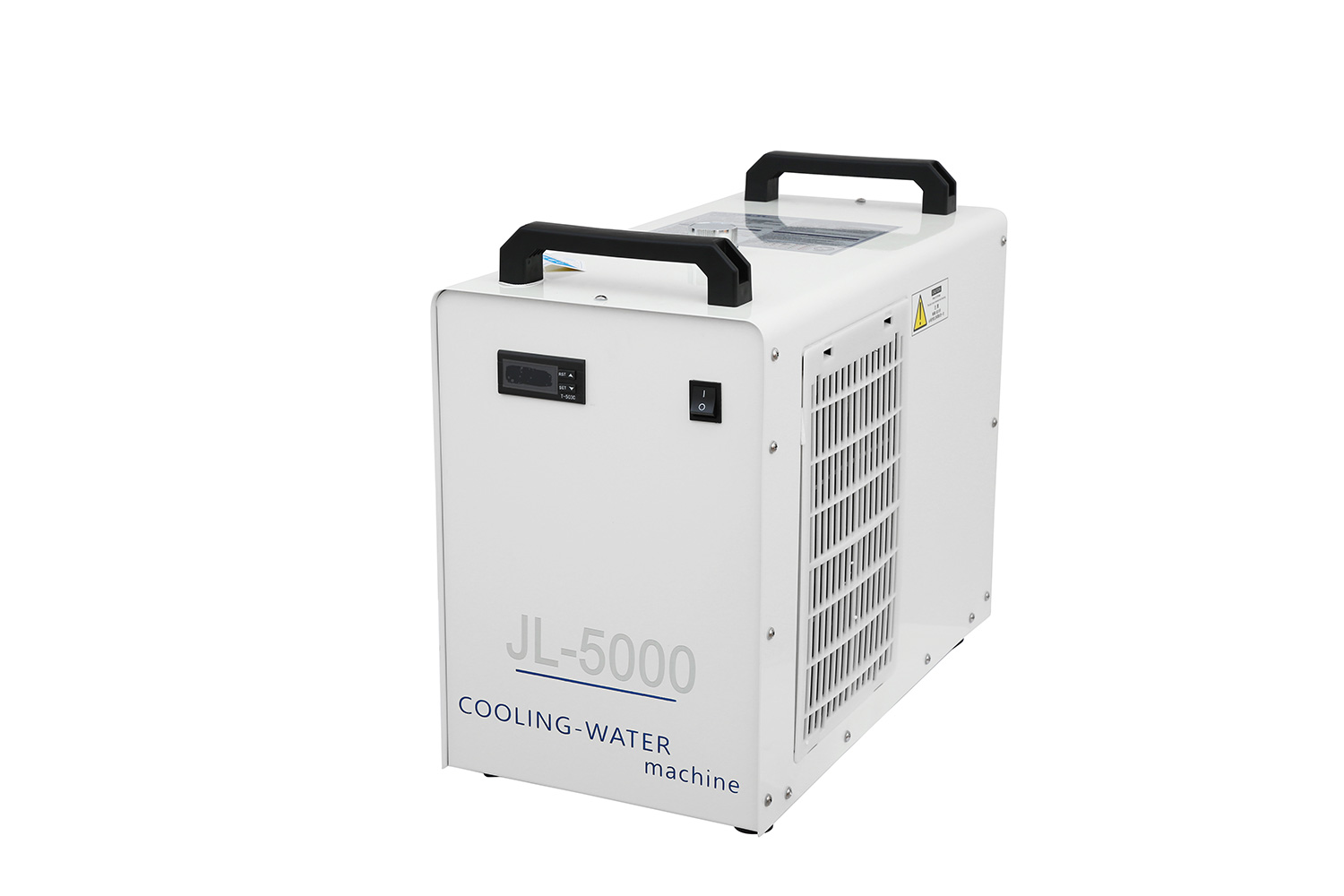

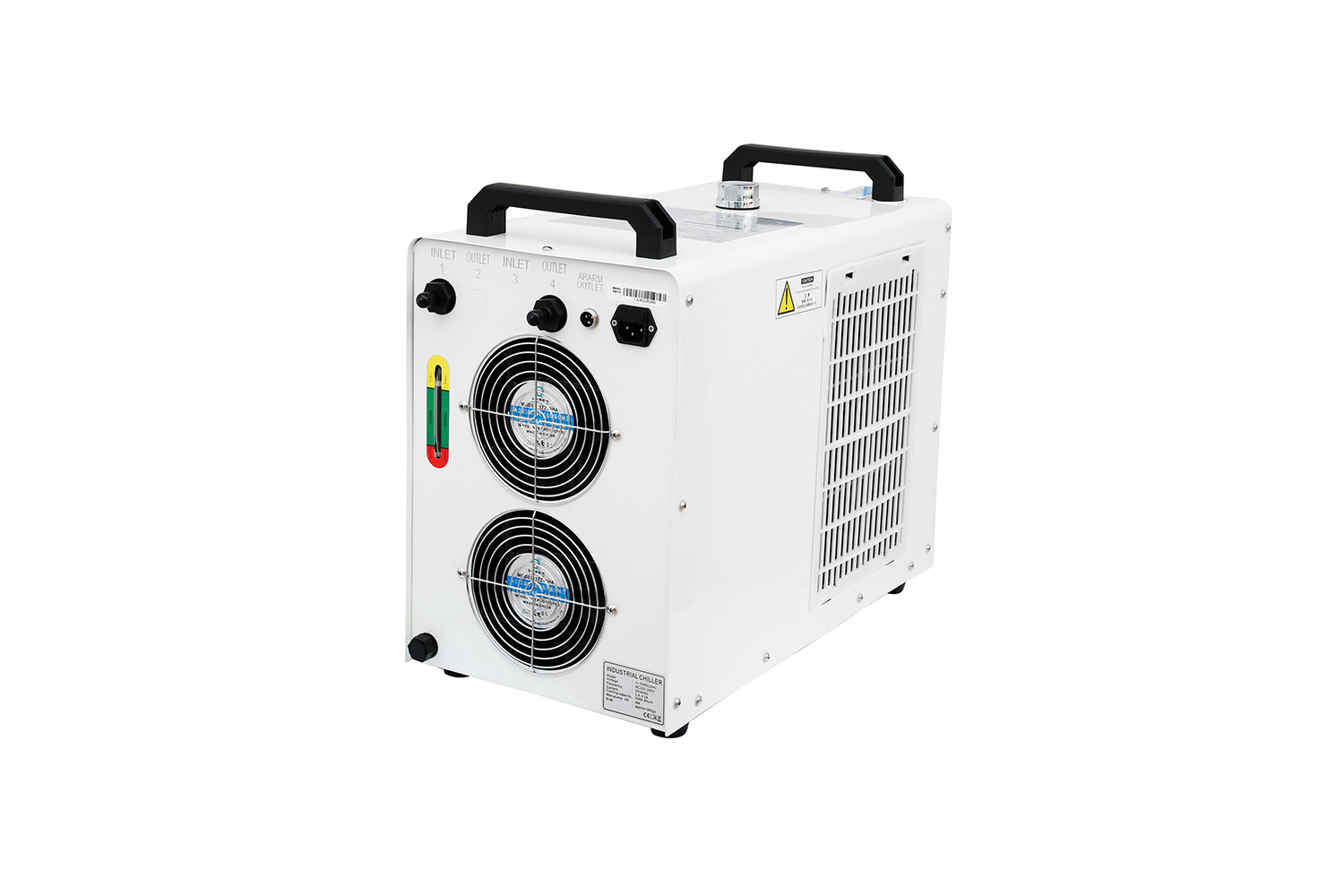

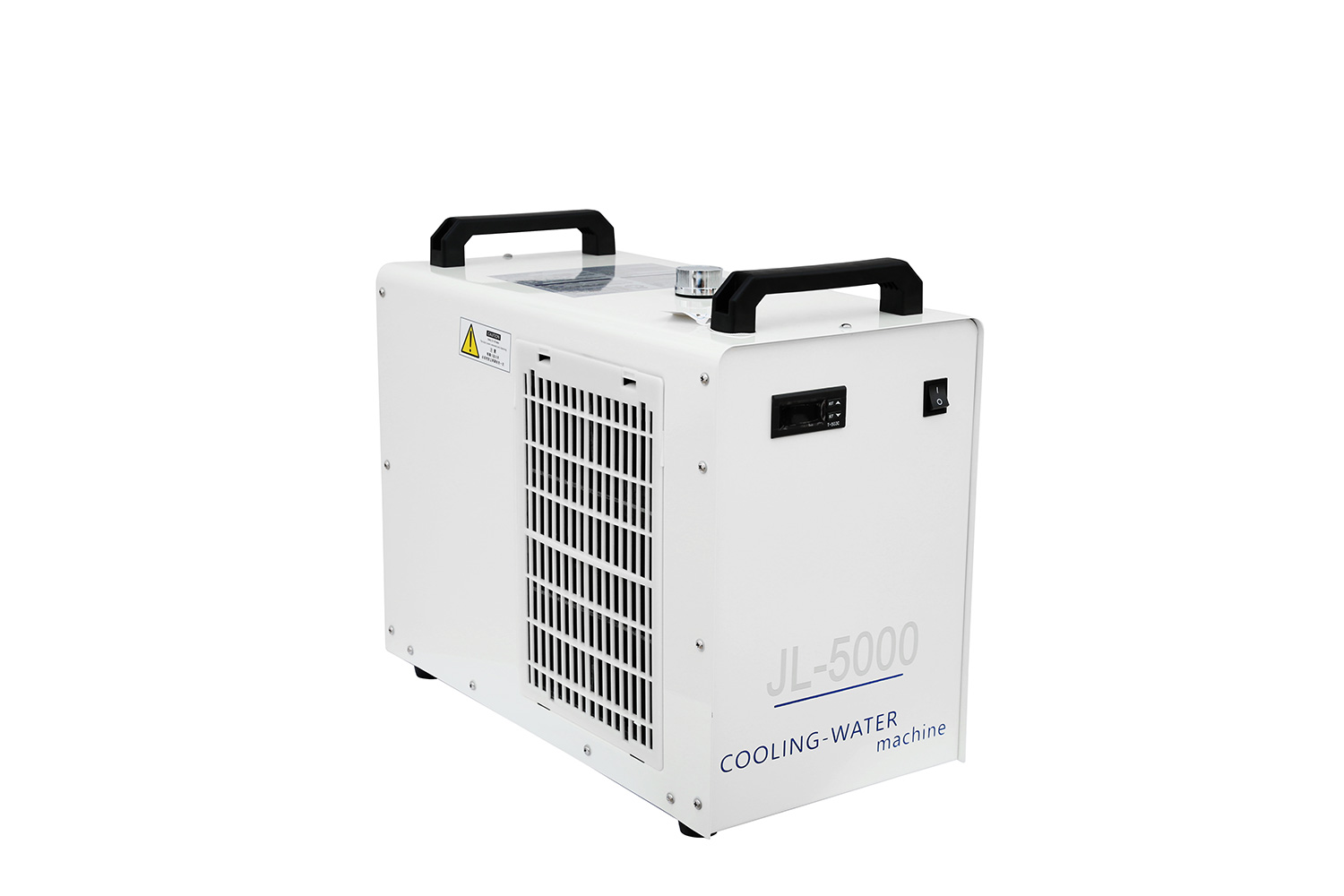

| MODEL | JL-5000A | JL-5000B | JL-5000C |
|---|---|---|---|
| Operating Voltage | AC 1PH 220V | AC 1PH 220V | AC 1P H110V |
| Operating Current | 0.35-2.8 | 0.35-3.0 | 0.4-4.2A |
| Frequency | 50HZ | 60HZ | 60HZ |
| Rated Power | 0.615KW | 0.66KW | 0.52KW |
| Rated Cooling Capacity | 1118 Kcar/h | ||
| 1.3KW | |||
| 4420 Btu/h | |||
| Refrigerant | R410a | ||
| Pump Voltage & Power | 24VDC/30W | ||
| Max. Head | 13m | ||
| Max. Flow Rate | 13L/min | ||
| Water Inlet/Outlet | 10mm barbed connector; Optional quick-connector 8/10/12mm | ||
| Max. Reservoir Capacity | 6L | ||
| Chiller Dimensions (L*W*H) | 560*470*285mm | ||
| Package Dimensions (L*W*H) | 650*380*540mm | ||
| Net Weight | 23KG | ||
| Gross Weight | 25KG | ||
